Pulsantiera tre file

Video door entry panels:

On request, we can manufacture push-button panels with video capability. In this case, please indicate the brand and model of the video device to be installed.

Custom-made push-button panels:

On request, we manufacture push-button panels based on customer designs, compatible with any intercom and video intercom system on the market.

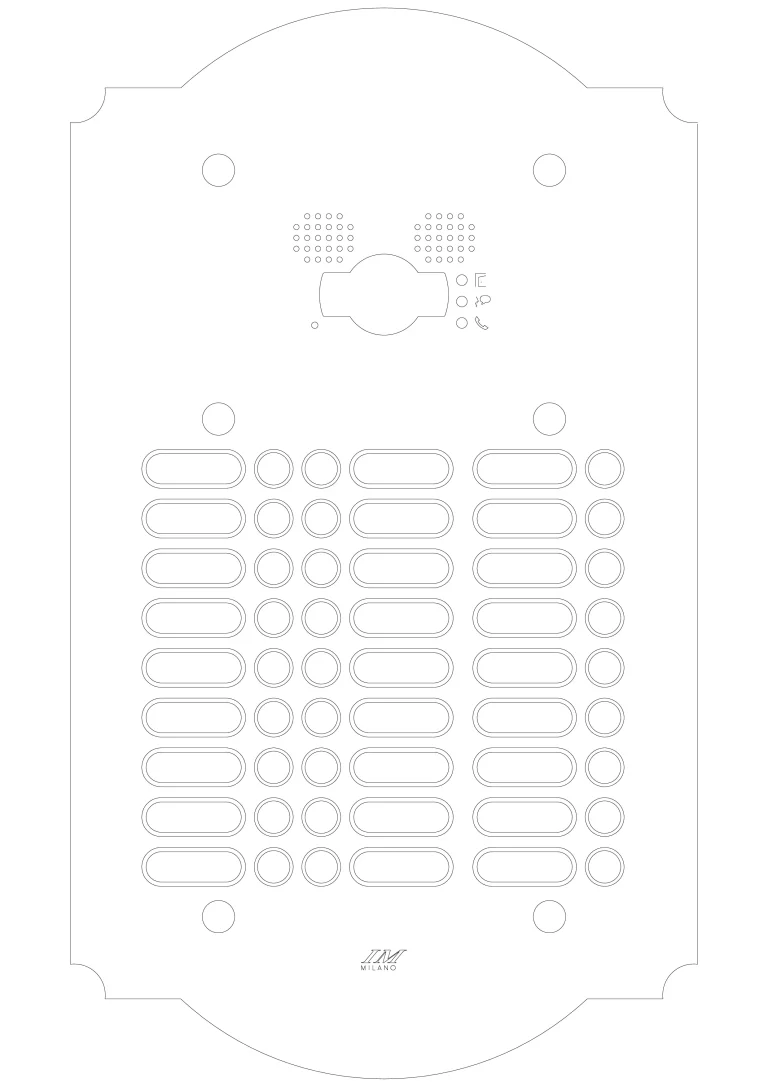

3 FILE Serie 9300

N° pul.	Art.	Front mm. b x h x sp	Recessed Box mm. b x h x sp
18	9318	290 x 426 x 3	260 x 296 x 55
21	9321	290 x 449 x 3	260 x 319 x 55
24	9324	290 x 472 x 3	260 x 342 x 55
27	9327	290 x 495 x 3	260 x 365 x 55
30	9330	290 x 518 x 3	260 x 388 x 55
33	9333	290 x 541 x 3	260 x 411 x 55
36	9336	290 x 564 x 3	260 x 434 x 55
39	9339	290 x 587 x 3	260 x 457 x 55
42	9342	290 x 610 x 3	260 x 480 x 55
45	9345	290 x 633 x 3	260 x 503 x 55

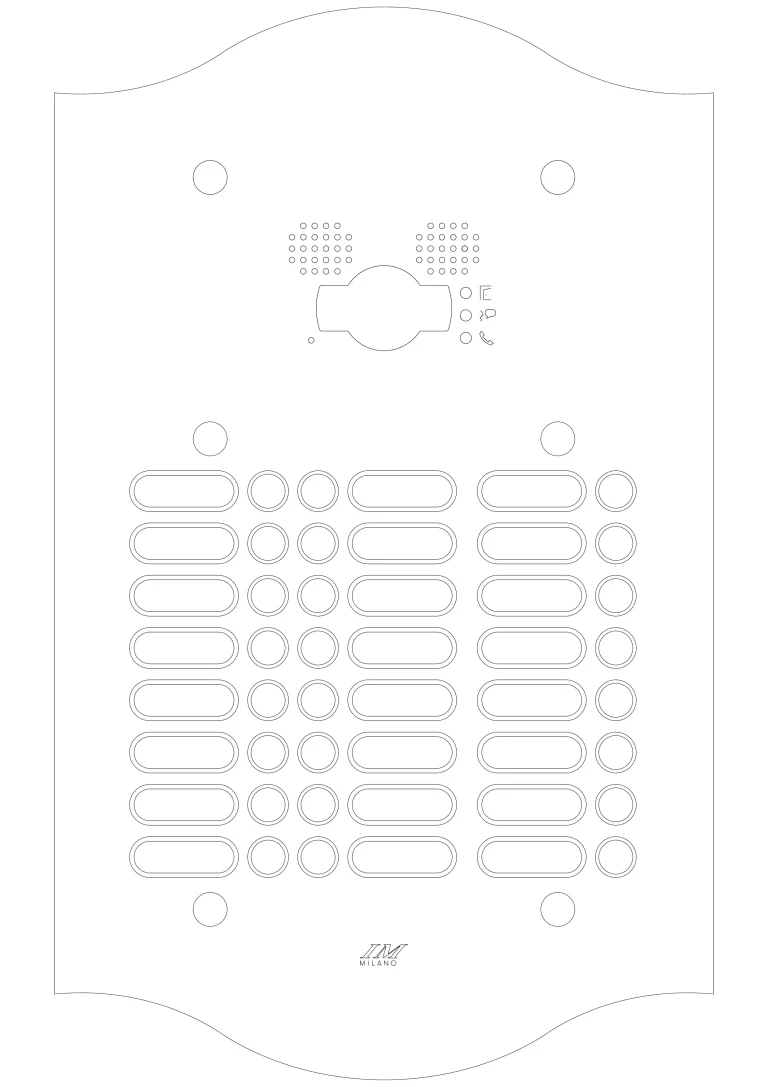

3 FILE Serie 8300

N° pul.	Art.	Front mm. b x h x sp	Recessed Box mm. b x h x sp
18	8318	290 x 426 x 3	260 x 296 x 55
21	8321	290 x 449 x 3	260 x 319 x 55
24	8324	290 x 472 x 3	260 x 342 x 55
27	8327	290 x 495 x 3	260 x 365 x 55
30	8330	290 x 518 x 3	260 x 388 x 55
33	8333	290 x 541 x 3	260 x 411 x 55
36	8336	290 x 564 x 3	260 x 434 x 55
39	8339	290 x 587 x 3	260 x 457 x 55
42	8342	290 x 610 x 3	260 x 480 x 55
45	8345	290 x 633 x 3	260 x 503 x 55

3 FILE Serie 7300

N° pul.	Art.	Front mm. b x h x sp	Recessed Box mm. b x h x sp
18	7318	290 x 426 x 3	260 x 296 x 55
21	7321	290 x 449 x 3	260 x 319 x 55
24	7324	290 x 472 x 3	260 x 342 x 55
27	7327	290 x 495 x 3	260 x 365 x 55
30	7330	290 x 518 x 3	260 x 388 x 55
33	7333	290 x 541 x 3	260 x 411 x 55
36	7336	290 x 564 x 3	260 x 434 x 55
39	7339	290 x 587 x 3	260 x 457 x 55
42	7342	290 x 610 x 3	260 x 480 x 55
45	7345	290 x 633 x 3	260 x 503 x 55

3 FILE Serie 6300

N° pul.	Art.	Front mm. b x h x sp	Recessed Box mm. b x h x sp
18	6318	290 x 346 x 3	260 x 296 x 55
21	6321	290 x 369 x 3	260 x 319 x 55
24	6324	290 x 392 x 3	260 x 342 x 55
27	6327	290 x 415 x 3	260 x 365 x 55
30	6330	290 x 438 x 3	260 x 388 x 55
33	6333	290 x 461 x 3	260 x 411 x 55
36	6336	290 x 484 x 3	260 x 434 x 55
39	6339	290 x 507 x 3	260 x 457 x 55
42	6342	290 x 530 x 3	260 x 480 x 55
45	6345	290 x 553 x 3	260 x 503 x 55

3 FILE Serie 5300

N° pul.	Art.	Front mm. b x h x sp	Recessed Box mm. b x h x sp
18	5318	290 x 336 x 3	260 x 296 x 55
21	5321	290 x 359 x 3	260 x 319 x 55
24	5324	290 x 382 x 3	260 x 342 x 55
27	5327	290 x 405 x 3	260 x 365 x 55
30	5330	290 x 428 x 3	260 x 388 x 55
33	5333	290 x 451 x 3	260 x 411 x 55
36	5336	290 x 474 x 3	260 x 434 x 55
39	5339	290 x 497 x 3	260 x 457 x 55
42	5342	290 x 520 x 3	260 x 480 x 55
45	5345	290 x 543 x 3	260 x 503 x 55
